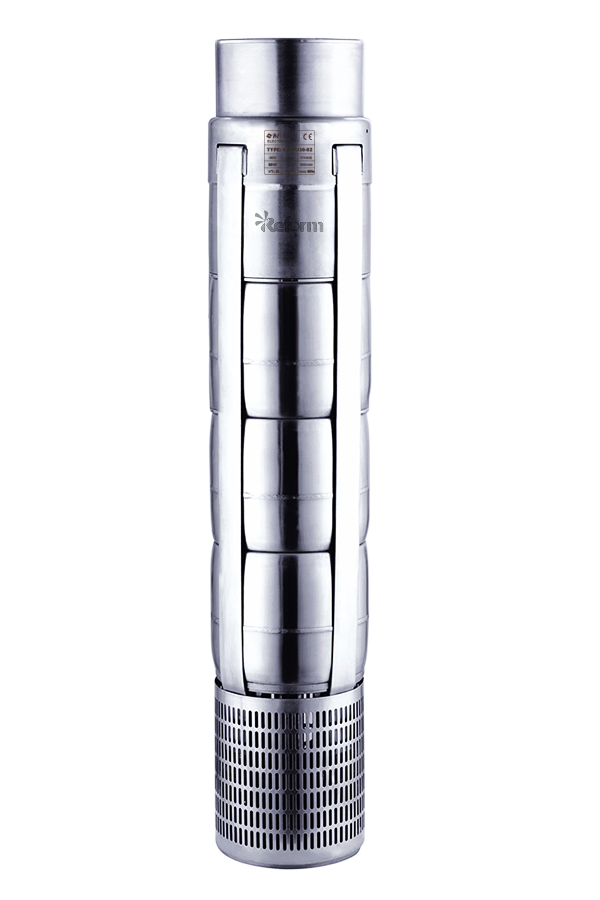

| 10 Inch Full Stainless Steel Pump | ||||||||||
Pump/Motor: |
||||||||||
| NEMA standard | ||||||||||
| Insulation class: F | ||||||||||
| Type | 10SP125 |
10SP160 |
Protection grade: IP68 | |||||||
| Normal flow (m3/h) | 125 | 160 | Maximum temperature of liquid:50°C | |||||||
| Outlet size | 6' | 6' | 220°C- Resistant lacquer-coated wires | |||||||
| Italian mechanical seal | ||||||||||
Part |
Material |
| Pump body | AISI304 |
| Impeller | AISI304 |
| Diffuser | AISI304 |
| Delivery door | AISI304 |
| Suction support | AISI304 |
| Sunction strainer | AISI304 |
| Shaft | AISI304 |
| Coupling | AISI304 |
| Check valve | AISI304 |
| Bearing | Wear Resistant Rubber |
