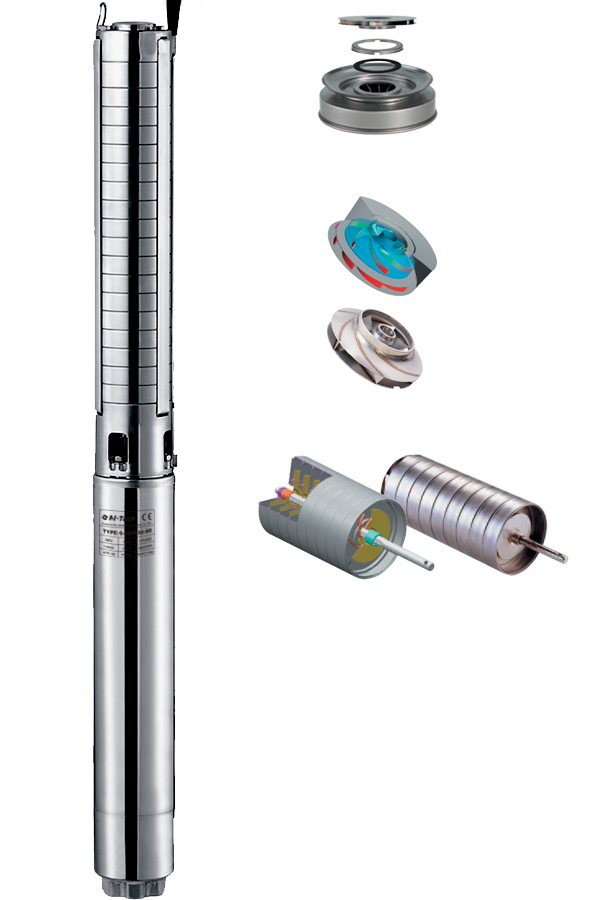

| 4 Inch Full Stainless Steel Pump | |||||||
Pump/Motor： |
|||||||
| NEMA standard | |||||||
| Insulation class: F | |||||||

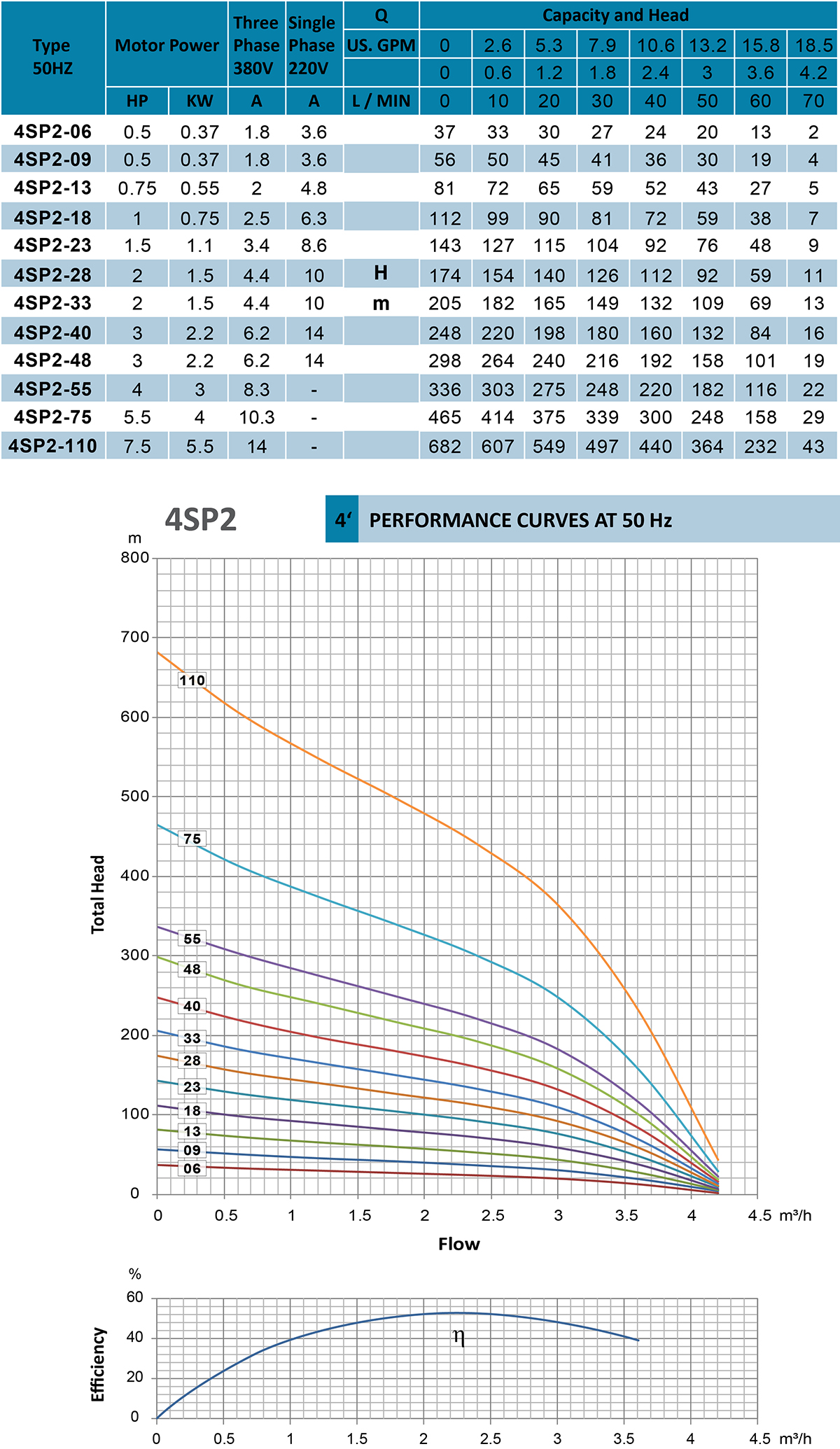

| Type | 4SP2 |

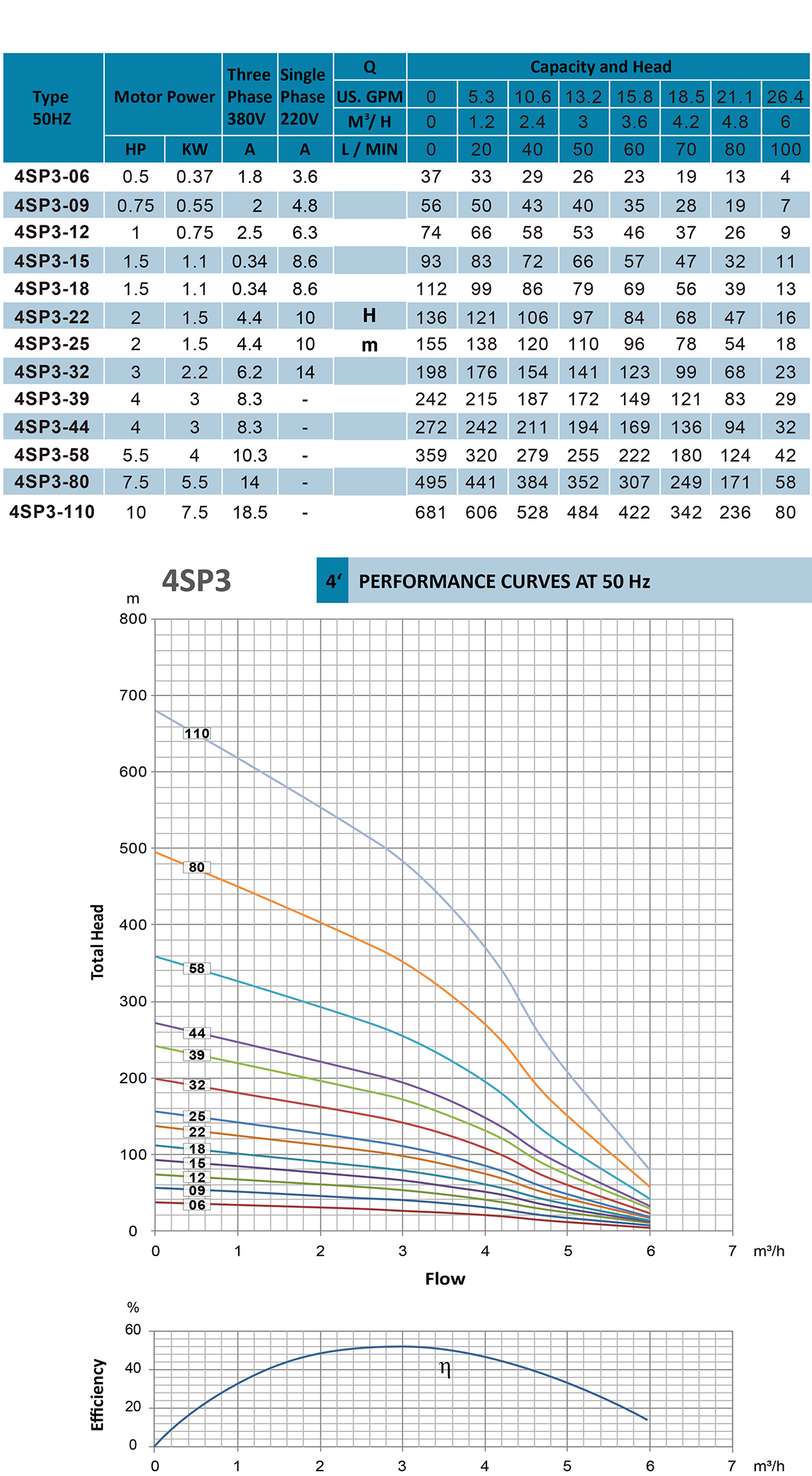

4SP3 |

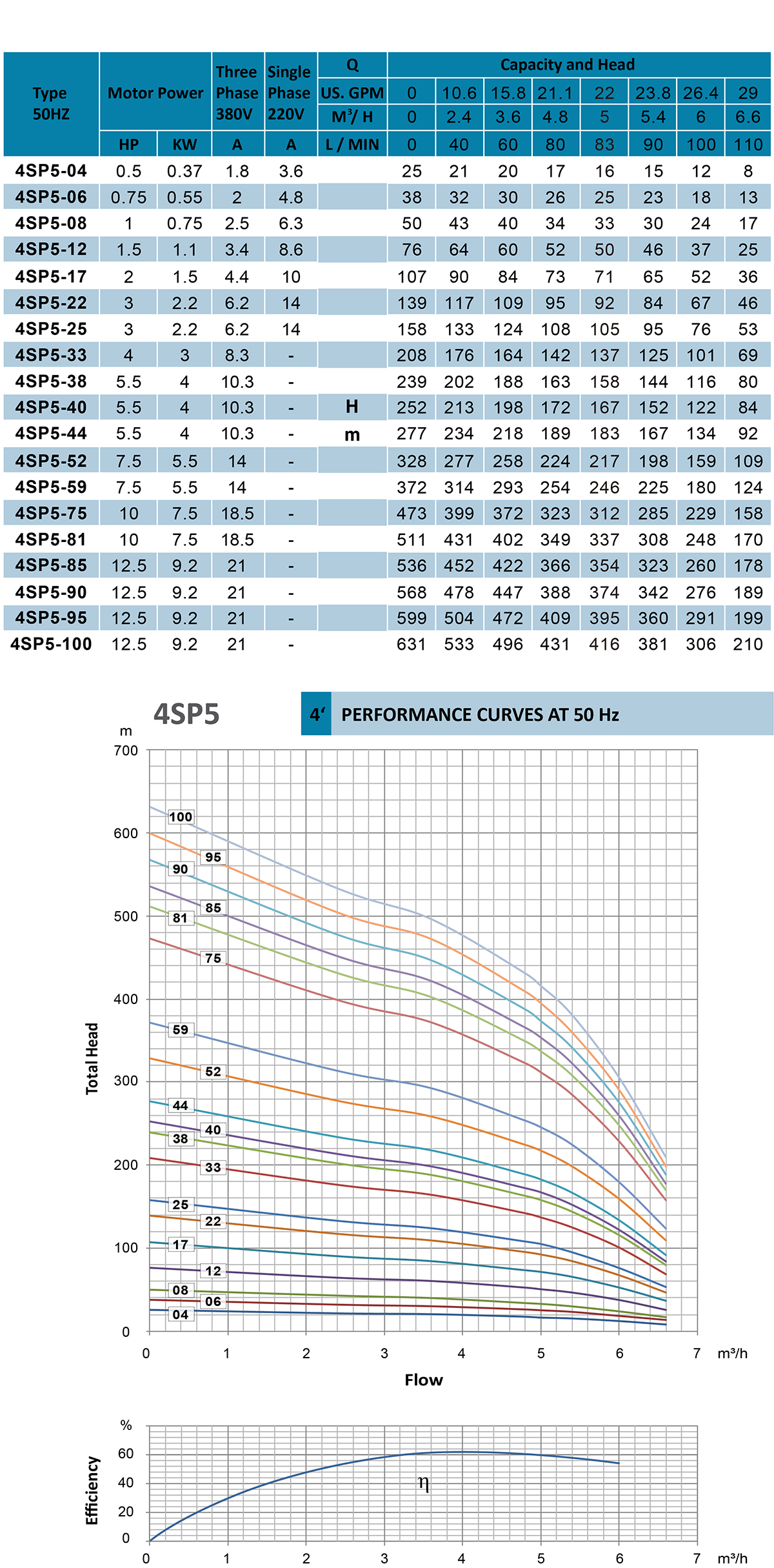

4SP5 |

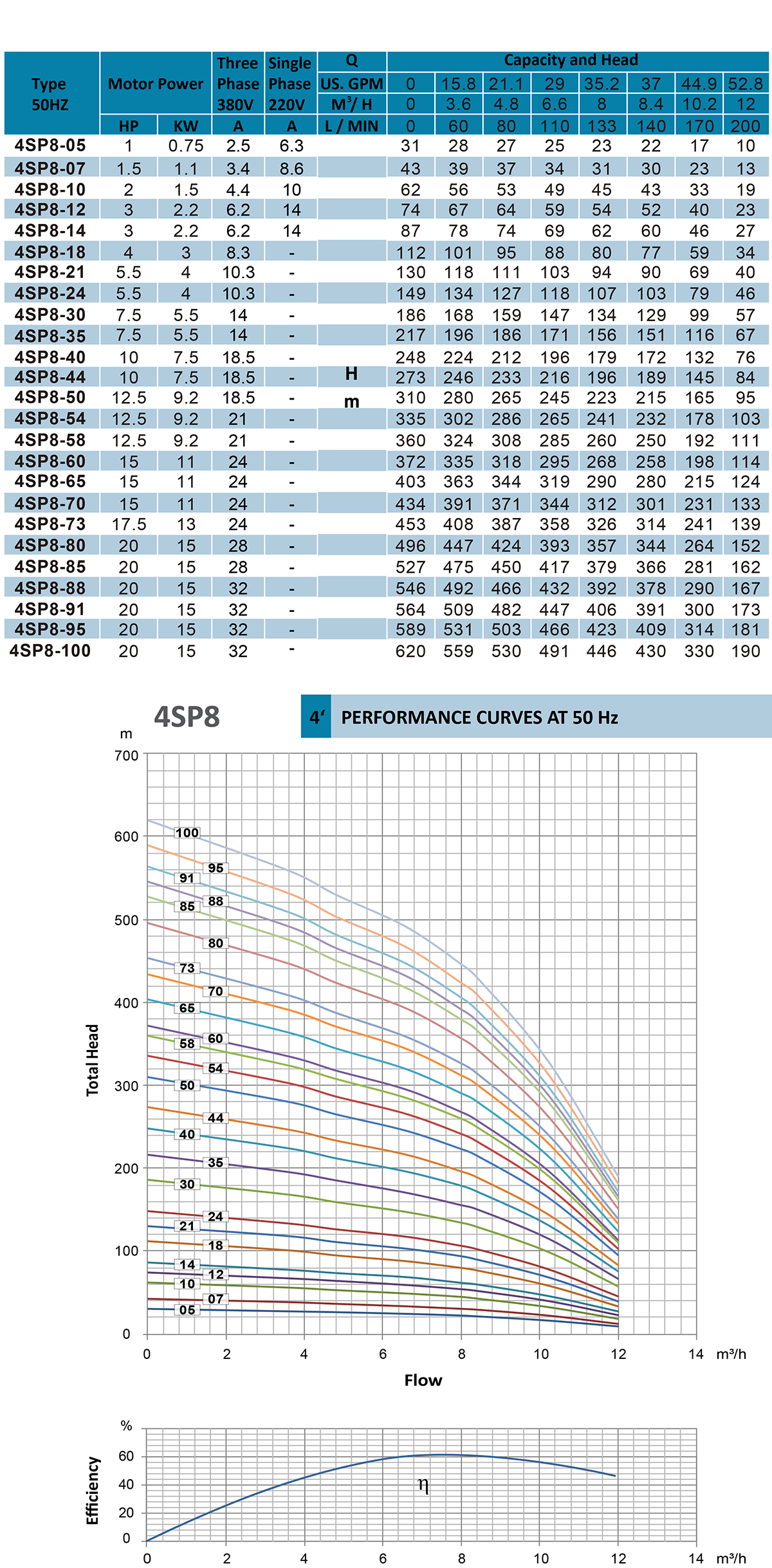

4SP8 |

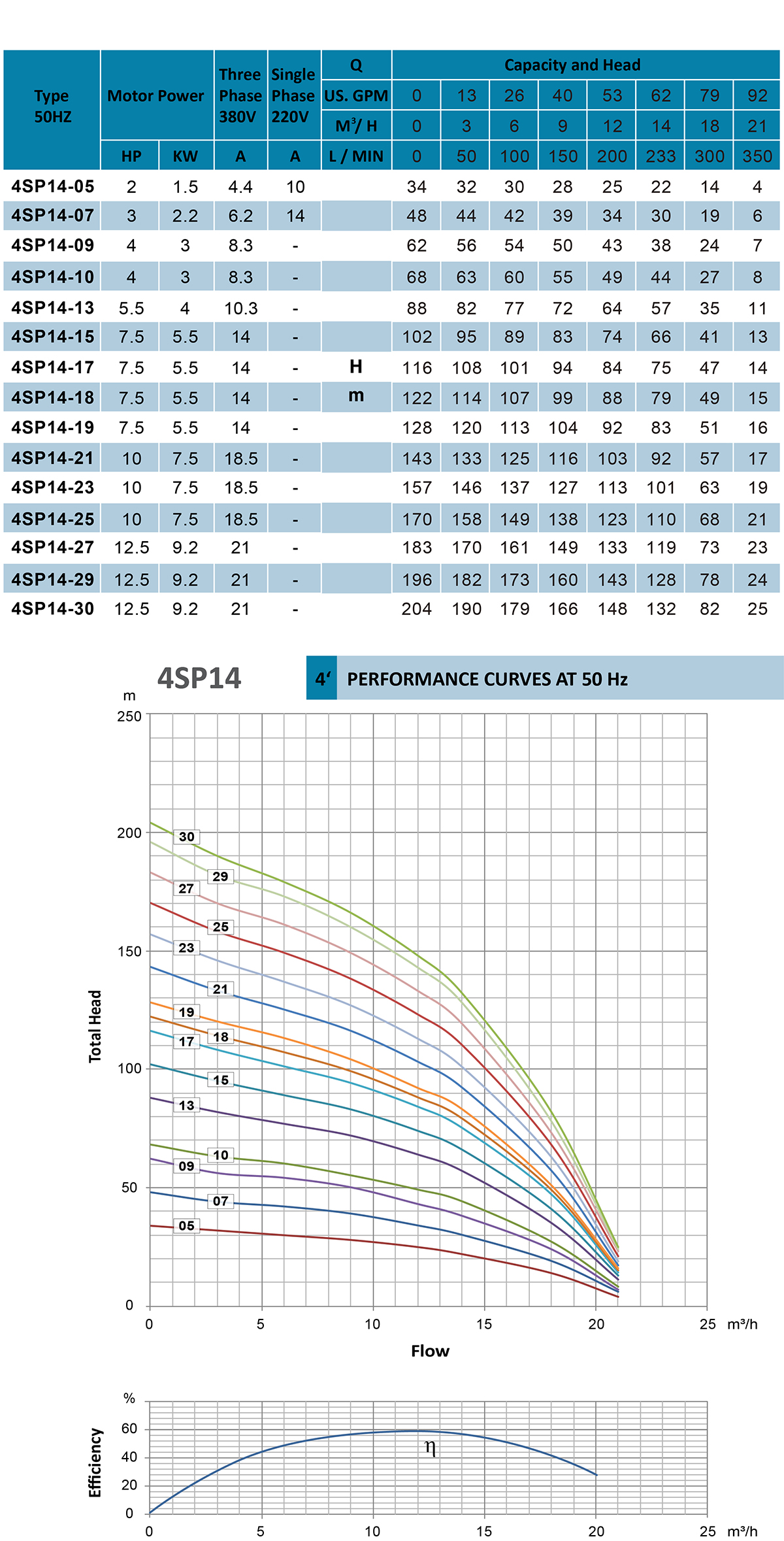

4SP14 |
Protection grade: IP68 | |
| Normal flow(m3/h) | 2 | 3 | 4 | 8 | 14 | Maximum temperature of liquid:35°C | |
| Outlet size | 1'1/4 | 1'1/4 | 1'1/4 | 2' | 2' | 220°C- Resistant lacquer-coated wires | |
| Italian mechanical seal | |||||||
Part |
Material |
| Pump body | AISI304 |
| Impeller | AISI304 |
| Diffuser | AISI304 |
| Delivery door | AISI304 |
| Suction support | AISI304 |
| Sunction strainer | AISI304 |
| Shaft | AISI304 |
| Coupling | AISI304 |
| Check valve | AISI304 |
| Bearing | Wear Resistant Rubber |
