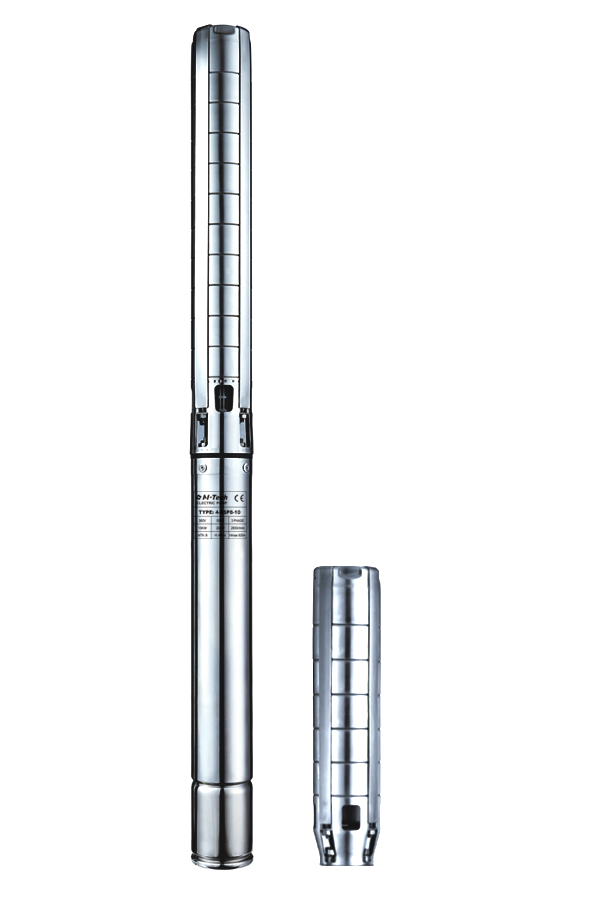

| 5 Inch Full Stainless Steel Pump | ||||||||||
Pump/Motor: |
||||||||||
| NEMA standard | ||||||||||
| Insulation class: F | ||||||||||

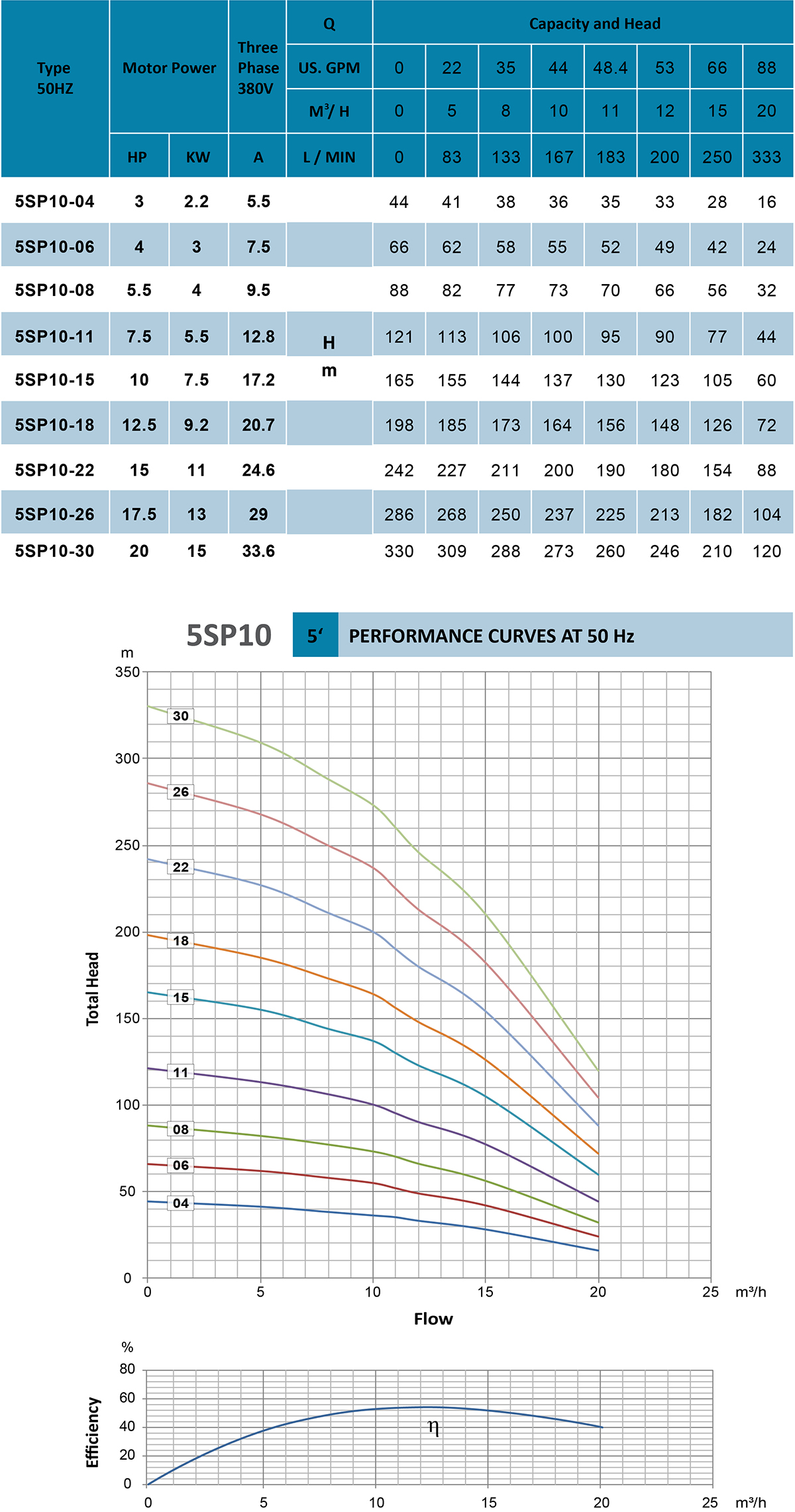

| Type | 5SP10 |

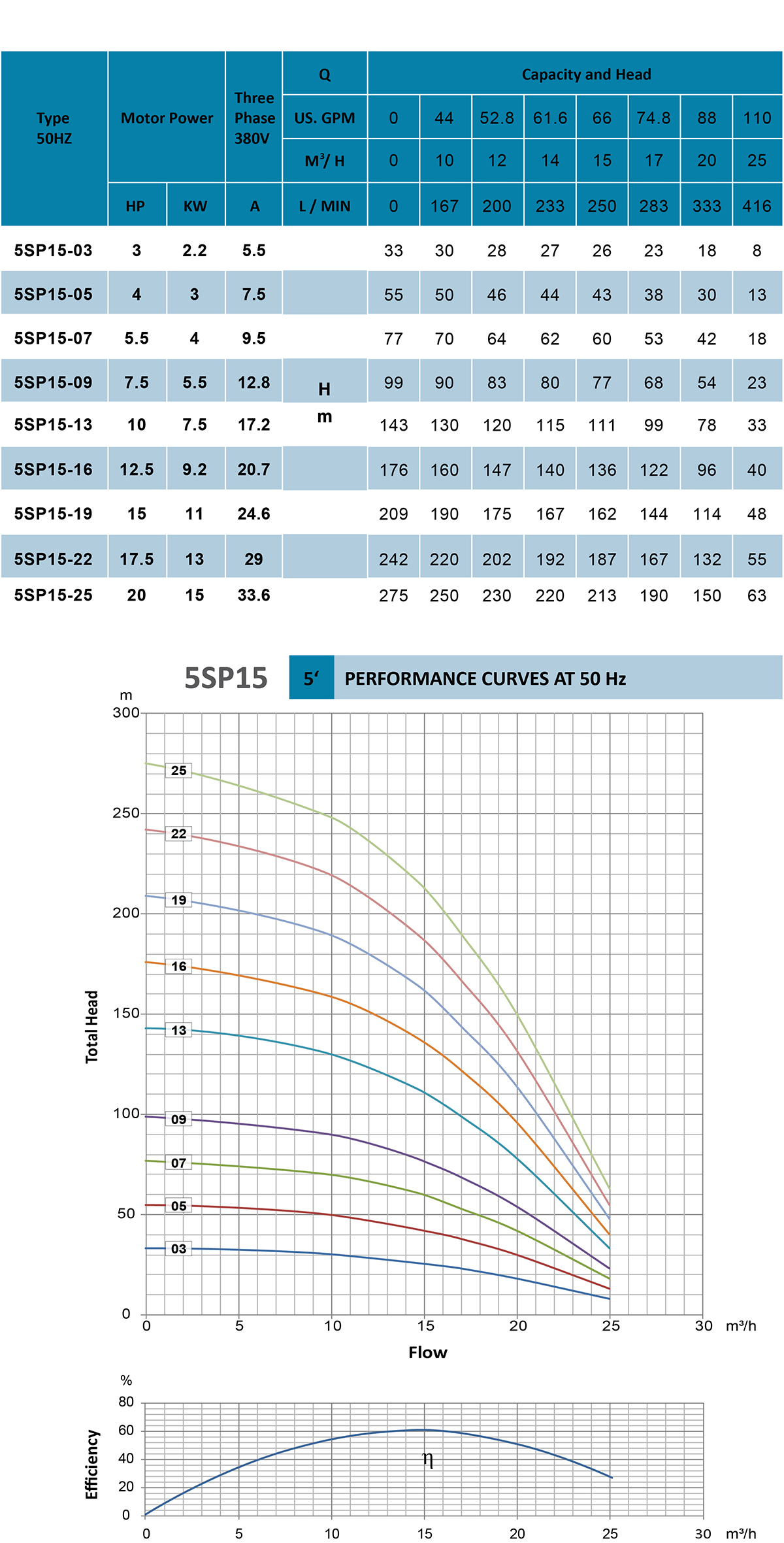

5SP15 |

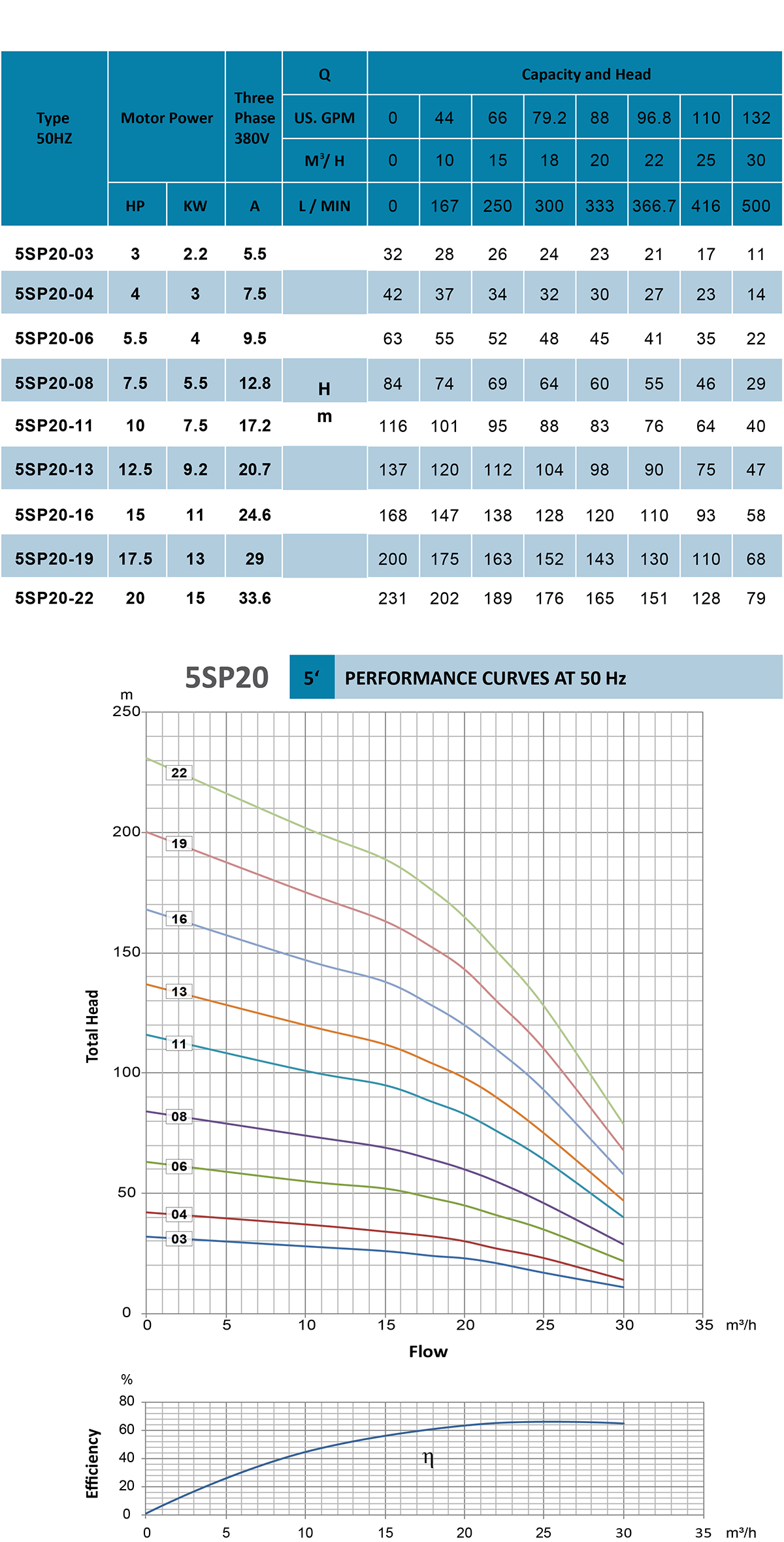

5SP20 |

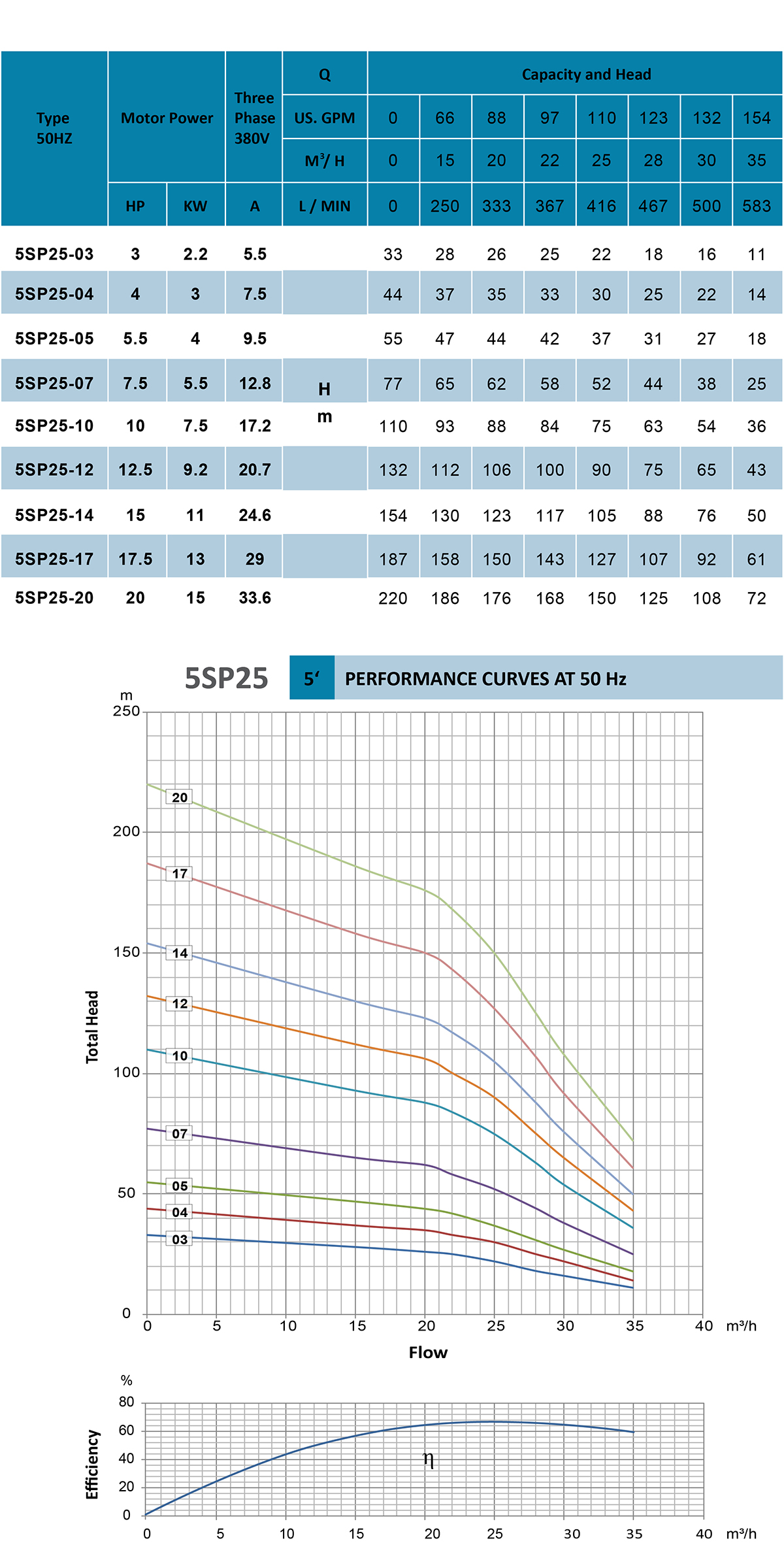

5SP25 |

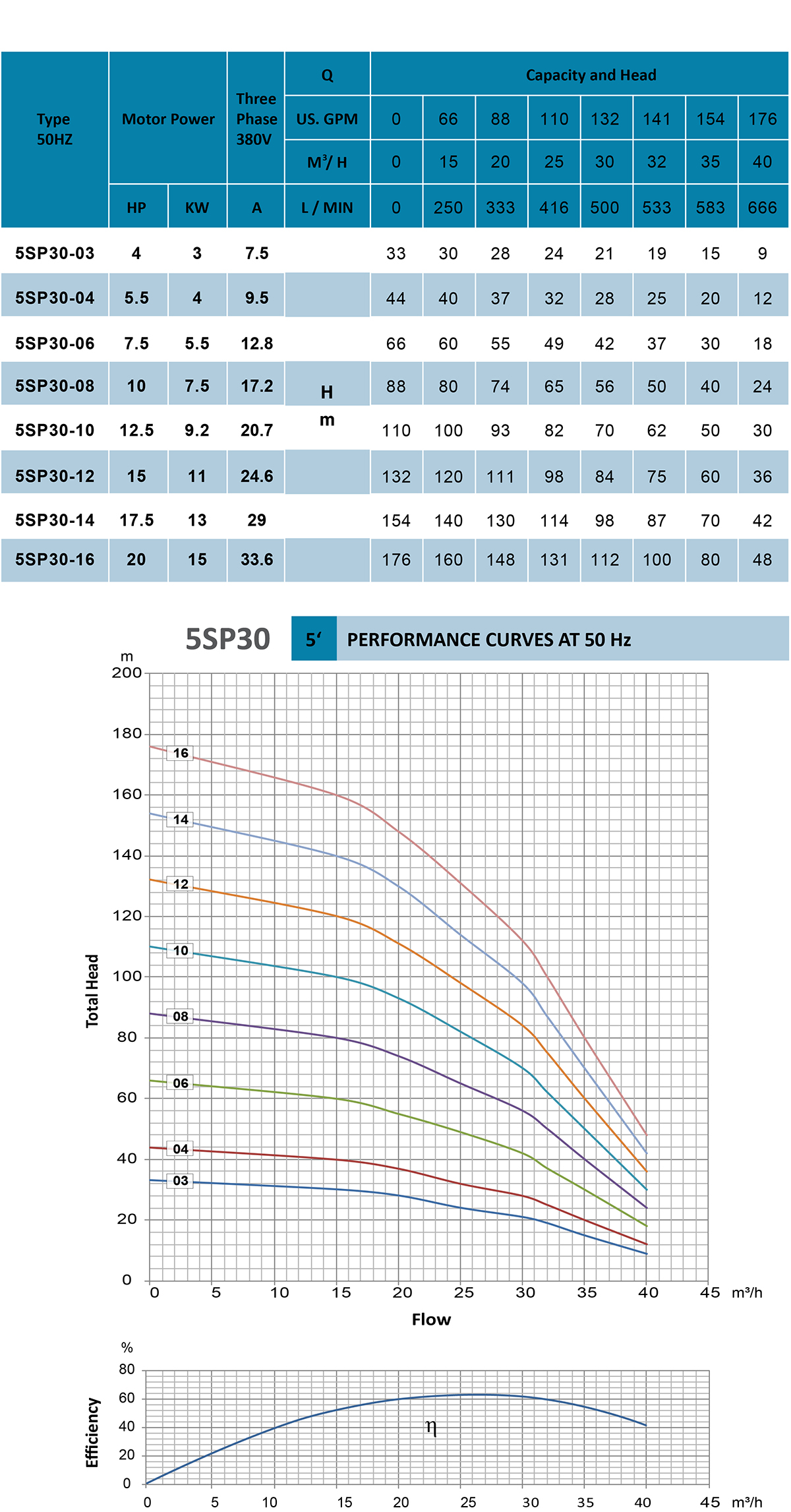

5SP30 |
Protection grade: IP68 | ||||
| Normal flow (m3/h) | 10 | 15 | 20 | 25 | 30 | Maximum temperature of liquid:50°C | ||||
| Outlet size | 2'1/2_3' | 2'1/2_3' | 2'1/2_3' | 2'1/2_3' | 2'1/2_3' | 220°C- Resistant lacquer-coated wires | ||||
| Italian mechanical seal | ||||||||||
Part |
Material |
| Pump body | AISI304 |
| Impeller | AISI304 |
| Diffuser | AISI304 |
| Delivery door | AISI304 |
| Suction support | AISI304 |
| Sunction strainer | AISI304 |
| Shaft | AISI304 |
| Coupling | AISI304 |
| Check valve | AISI304 |
| Bearing | Wear Resistant Rubber |
