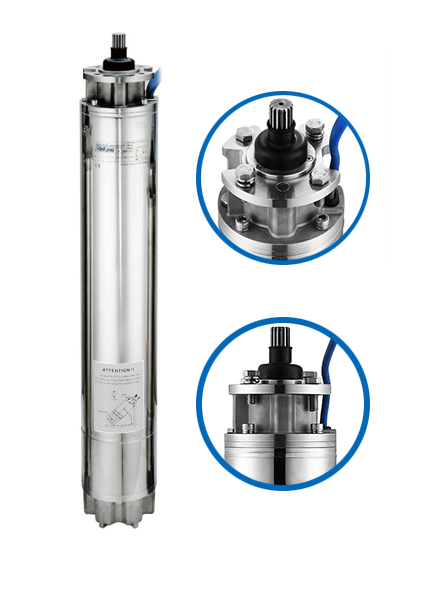

| 5 Inch Water Filled Motor | |||||||||||||||||||||
Voltage |
3 Phase 380/415V 50Hz | ||||||||||||||||||||
Power |
4 | 5.5 | 7.5 | 9.2 | 11 | 13 | 15 | 18.5 | |||||||||||||
Current |
11 | 14.3 | 19 | 23 | 27.5 | 32 | 36 | 44 | |||||||||||||
RPM |
2860 | 2860 | 2800 | 2860 | 2860 | 2860 | 2860 | 2860 | |||||||||||||
Length |
842 | 882 | 902 | 952 | 1002 | 1072 | 1132 | 1212 | |||||||||||||
Weight |
36.8 | 41.5 | 44.6 | 48.3 | 53 | 58.3 | 62.8 | 69.7 | |||||||||||||
Features: |
| Motor is rewindable winding design |
| Skeleton oil seal, sand control technology |
| Lacquer coated wire conforms to USA standard of NEMA MW37-C, 220°C- Resistant |
| Maximum temperature of liquid:45°C |
Material: |
| High quality cold-rolled silicon steel lamination. |
| PE2 copper diving wire, for long time continuous work. |
| Stator adopts H class (220 degrees) high temperature resistant copper wire. |
| High load thrust bearing. |
