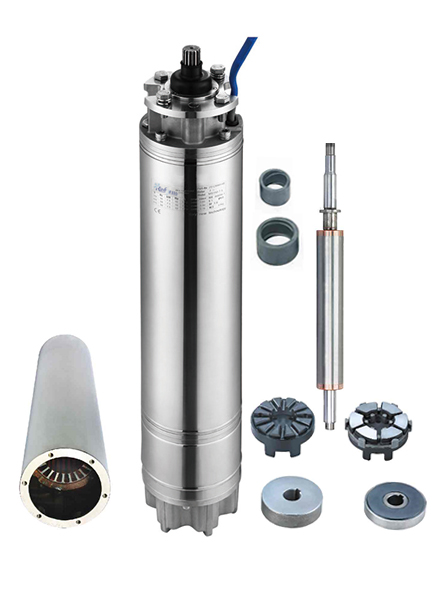

6 Inch Water Filled Motor

 Voltage

 3 Phase 380/415V 50Hz

 Power
  (KW)

 3 4 5.5 7.5 9.2 11 13 15 18.5 22 26 30 37

 Current
  (A)

 8.5 10 13.2 17.2 20.8 24.6 27 31 38.5 44 53.5 60 74

 RPM

 2850 2850 2860 2860 2860 2860 2870 2870 2880 2880 2880 2880 2880

 Length
  (mm)

 740 761 801 836 866 891 921 976 1026 1076 1131 1186 1276

 Weight
  (kg)

 38 42 46 50 54 57 62 67 74 79 84 90 105

Material

Features:
Motor is rewindable winding design
Skeleton oil seal, sand control technology
High efficiency, energy saving and environment friendly.
Maximum temperature of liquid:45°C
Flange and spline is NEMA standard

Material:
High quality cold-rolled silicon steel stator.
PE2 copper diving wire, for long time continuous work.
Copper bar rotor or cast aluminium.
Stainless steel motor shaft.
High load thrust bearing, made of special material.
