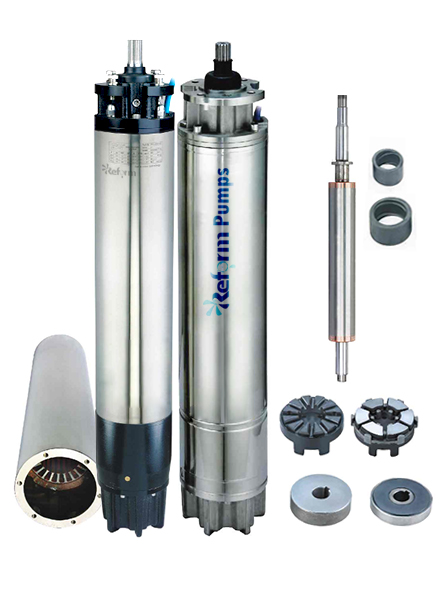

| 8 Inch Water Filled Motor | ||||||||||||||||||||||||||
Voltage |
3 Phase 380/415V 50Hz | |||||||||||||||||||||||||
Power |
30 | 37 | 45 | 55 | 64 | 75 | 90 | 100 | 110 | |||||||||||||||||
Current |
61.5 | 75 | 95 | 111 | 126 | 155 | 185 | 205 | 226 | |||||||||||||||||
RPM |
2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | |||||||||||||||||
Length |
1280 | 1325 | 1380 | 1515 | 1575 | 1645 | 1735 | 1851 | 1855 | |||||||||||||||||
Weight |
142 | 148 | 160 | 188 | 198 | 211 | 231 | 270 | 300 | |||||||||||||||||
Features: |
| Motor is rewindable winding design |
| Skeleton oil seal, sand control technology |
| High efficiency, energy saving and environment friendly. |
| Maximum temperature of liquid:45°C |
| Flange and spline is NEMA standard |
Material: |
| High quality cold-rolled silicon steel stator. |
| PE2 copper diving wire, for long time continuous work. |
| Copper bar rotor. |
| Stainless steel motor shaft. |
| High load thrust bearing, made of special material. |
