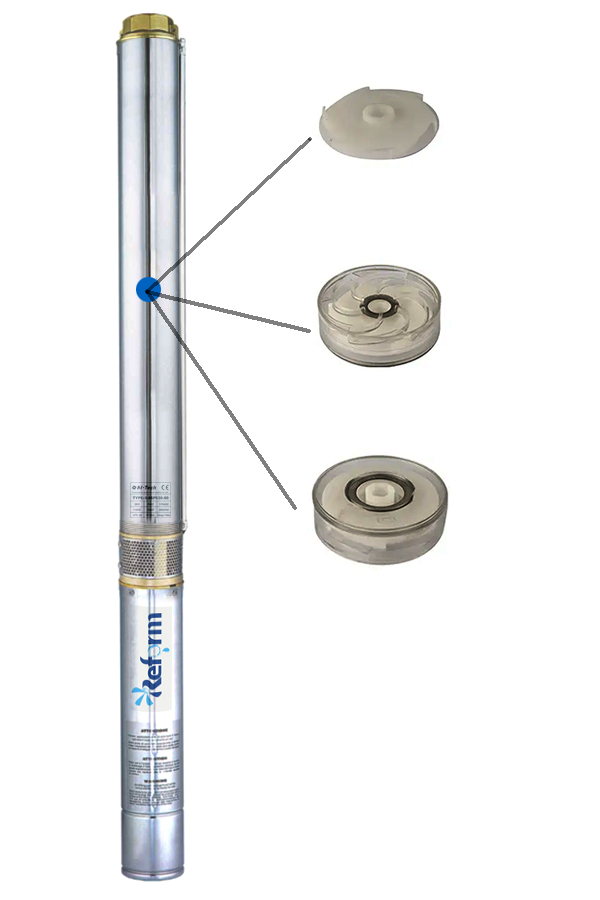

| 4 Inch Plastic Impeller Pump | |||||||||||||
Pump/Motor： |
|||||||||||||
| NEMA standard | |||||||||||||
| Insulation class: F | |||||||||||||
| Type | R4P1 |
R4P2 |
R4P4 |
R4P6 |
R4P8 |
R4P10 |
R4P16 |
Protection grade: IP68 | |||||
| Normal flow(m3/h) | 1.2 | 2 | 4 | 6 | 8 | 10 | 16 | Maximum temperature of liquid:35°C | |||||
| Outlet size | 1'1/4 | 1'1/4 | 1'1/2 | 1'1/2 | 2' | 2' | 2' | 220°C- Resistant lacquer-coated wires | |||||
| Italian mechanical seal | |||||||||||||
Part |
Material |
| Pump body | AISI304 |
| Impeller | Plastic(POM) |
| Diffuser | Plastic(PC) |
| Delivery door | Copper |
| Suction support | Copper |
| Sunction strainer | AISI304 |
| Shaft | 2Cr13 |
| Coupling | AISI304 |
| Check valve | Plastic(POM) |
| Bearing | Nitrile rubber (NBR) |
