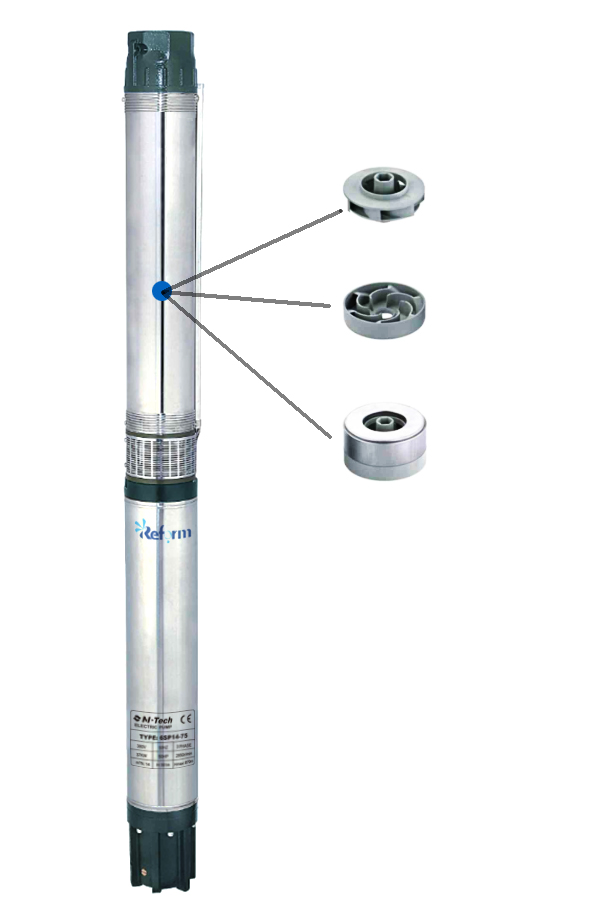

| 6 Inch Plastic Impeller Pump | |||||||||||||
Pump/Motor： |
|||||||||||||
| NEMA standard | |||||||||||||
| Insulation class: F | |||||||||||||

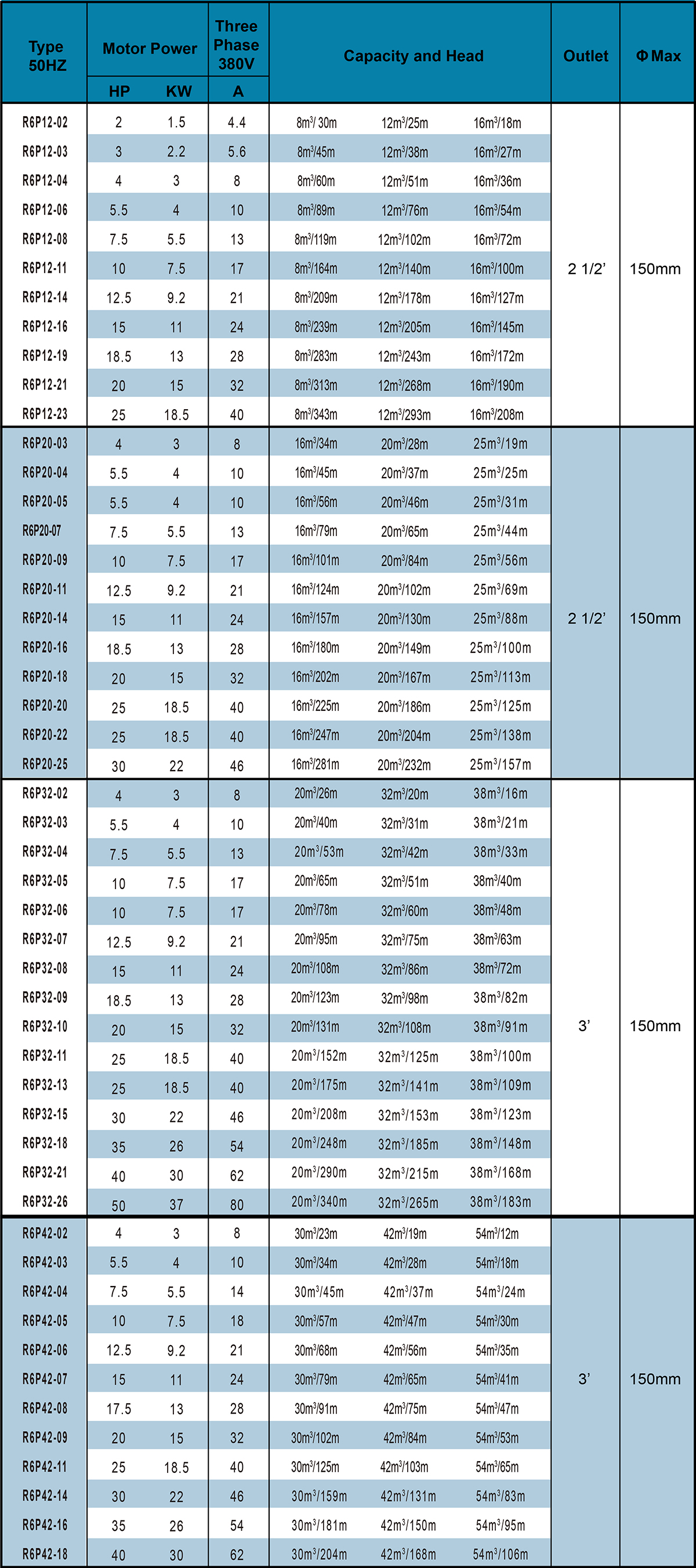

| Type | R6P12 |
R6P20 |
R6P32 |
R6P42 |
Protection grade: IP68 | ||||||||
| Normal flow(m3/h) | 12 | 20 | 32 | 42 | Maximum temperature of liquid:50°C | ||||||||
| Outlet size | 2'1/2 | 2'1/2 | 3' | 3' | 220°C- Resistant lacquer-coated wires | ||||||||
| Italian mechanical seal | |||||||||||||
Part |
Material |
| Pump body | AISI304 |
| Impeller | Plastic(PPO) |
| Diffuser | Plastic(PPO) |
| Delivery door | Cast iron |
| Suction support | Cast iron |
| Sunction strainer | AISI304 |
| Shaft | 2Cr13 |
| Coupling | AISI304 |
| Check valve | Nylon |
| Bearing | Nitrile rubber (NBR) |
