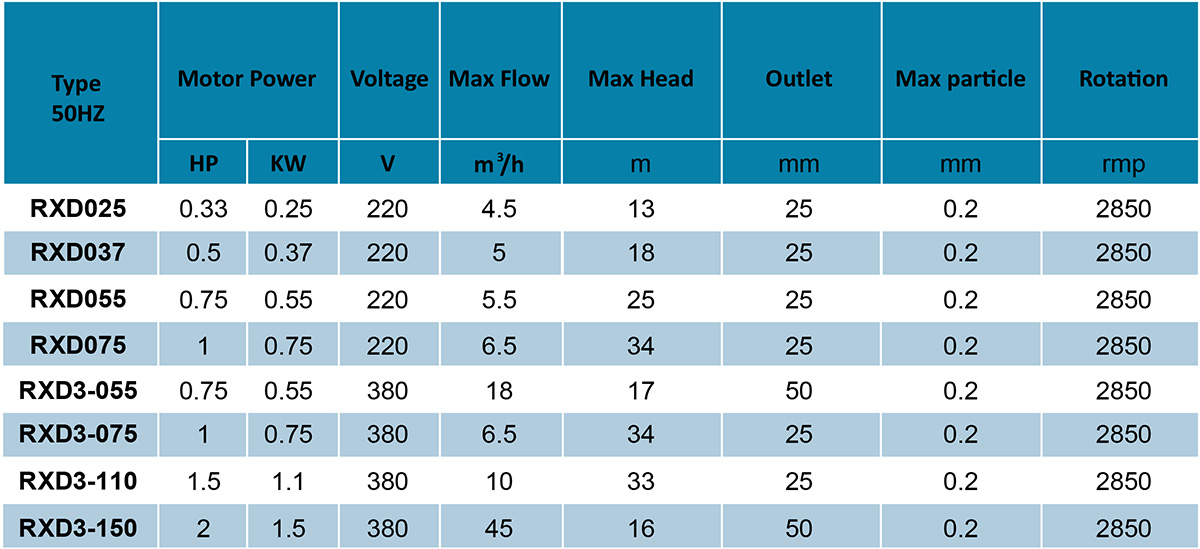

| RXD Drainage Pump | |||||||||||||||||
| Type | RXD025 |
RXD037 |
RXD055 |
RXD075 |
RXD3055 |
RXD3075 |
RXD3110 |
RXD3150 |
|||||||||
| Normal flow(m3/h) | 1.5 | 1.5 | 1.5 | 1.5 | 10 | 1.5 | 3 | 25 | |||||||||
| Outlet size | 1' | 1' | 1' | 1' | 2' | 1' | 1' | 2' | |||||||||
Pump/Motor： |
|||||||||||||||||
| NEMA standard Insulation class: F Protection grade: IP68 | |||||||||||||||||
| Maximum temperature of liquid:40°C | |||||||||||||||||
| 220°C- Resistant lacquer-coated wires | |||||||||||||||||
| Double face mechanical seal | |||||||||||||||||

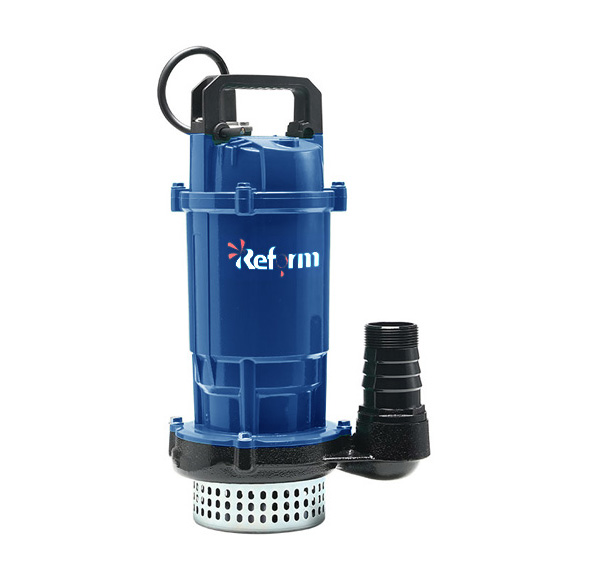

 details.jpg)
Part |
Material |
| Pump body | Cast iron |
| Motor Shell | Aluminium |
| Impeller | Cast iron |
| Diffuser | Cast iron |
| Outlet pipe | Plastic(PC) |
| Suction support | AISI304 |
| Shaft | AISI304 |
